RC-196C Part 23 - Snap Ring

(No reviews yet) Write a Review
$3.99
SKU:
RC-196C-23

Product Overview

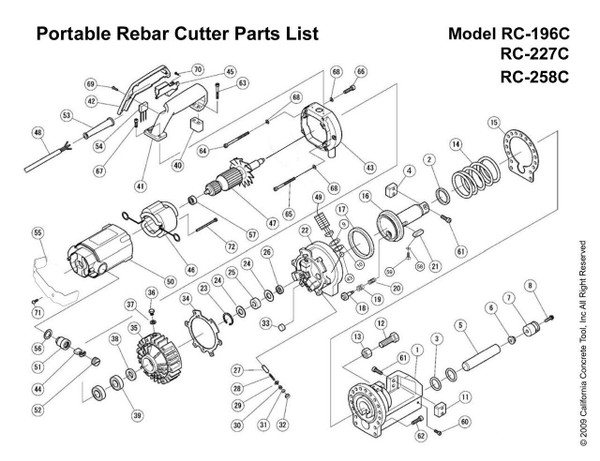

PART NO. DISCRIPTION
#1 FORGED HEAD
#2 SEAL
#3 O RING
#4 CUTTER BLOCKS
#5 PLUNGER
#6 PLUNGER SPRING
#7 SEAL
#8 AIR BAG SET BOLT
#9 O RING
#10 O RING
#11 CUTTER BLOCKS
#12 STOPPER BOLT WITH NUT
#13 NUT
#14 RETURN SPRING
#15 CYLINDER PACKING
#16 PISTON
#17 SEAL PACKING / PISTON
#18 RETURNE VALVE
#19 RETURNE VALVE SPRING
#20 VALVE END SPRING
#21 PISTON KEY
#22 CYLINDER
#23 SNAP RING
#24 BEARING GUIDE
#25 NEEDLE BEARING
#26 BEARING 609
#27 RAM
#28 RAM RETURNE SPRING
#29 DELIVERY VALVE
#30 DELIVERY VALVE SPRING
#31 SPRING GUIDE
#32 PUMP HEAD SEAL
#33 FILTER MAGNET
#34 PUMP CASE PACKING
#35 PUMP CASE
#36 BOLT / OIL PLUG
#37 SEAL WASHER (WF10)
#38 OIL SEAL (SC20-35-8)
#39 BEARING (6004V V)
#40 HANDLE PIECE
#41 HANDLE
#42 SWITCH COVER
#43 STEEL BALL
#44 CARBON BRUSH SET
#45 SWITCH / TRIGGER
#46 STATOR COIL
#47 ARMATURE
#48 ELECTRICAL CORD
#49 FAN COVER
#50 MOTOR HOUSING
#51 BRUSH HOLDER
#52 CARBON BRUSH CAP
#53 CORD ARMOR
#54 CONDENSER
#55 REAR HOUSING COVER
#56 SEAL
#57 ARMATURE BEARING / REAR
#58
#59
#60 CAP BOLT M6 X 16
#61 CAP BOLT M8X25
#62 CAP BOLT M8 X 30
#63
#64 CAP BOLT M6X90
#65
#66
#67 CAP BOLT M6 X 16
#68 S. WASHER M6
#69 SWITCH COVER BOLT M4 X 15
#70 SWITCH BOLT M4 X 10
#71 BOLT M5 X 10
#72 STATOR COIL BOLT
